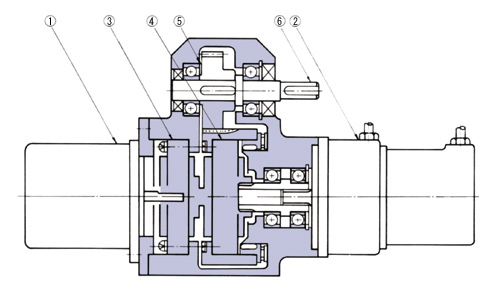

Distinctive drive with two input points to planetary gear units by drive motor side and control motor side. Smooth, equable rotating, and transmission with generating differential by increasing and decreasing of control motor revolution. Rotation shift of direction of output revolution, control of output revolution, and switching of output point are available with switching of input point and adjustment of input revolution to planetary gear unit.
4.
Planetary Gear Unit
5.
Spur gear
6.
Output shaft
EX.Reduction ratio 1/5
NI=Output revolution(r.p.m)
NS=Input revolution(r.p.m)
NC｡瓩arrier revolution(r.p.m)
