ELECTRIC ACTUATOR

We've already decided basic functions and
　 size of the product, but facing difficulties
　 in structural designing
We need a product saving space and weight.
We are looking for a partner company
　 which has rich achievements and
　 capability of mass production.

We undertake commission development including designing and trial production.

ELECTRIC ACTUATOR WITH PLANETARY GEAR & INJECTION MOLDING KNOWLEDGES

Air Conditioner Filter Elevator,
Air Conditioner Front Panel Opening Machine

Based on the know-how cultivated in reducer development and injection molding, Matex is engaged in every activity from comissioned development to production of various electric actuators.

We especially excel in compact designing. We develop high valued products by selecting the well-balanced materials in order to meet diversified customers' requirements.

For example, our air conditioner filter elevator and louver drive unit for air conditioner were adopted by Japanese leading appearance manufacturers.

Rear Hatch Opener

Dishwasher Opener

EXAMPLE OF OUR DEVELOPMENT

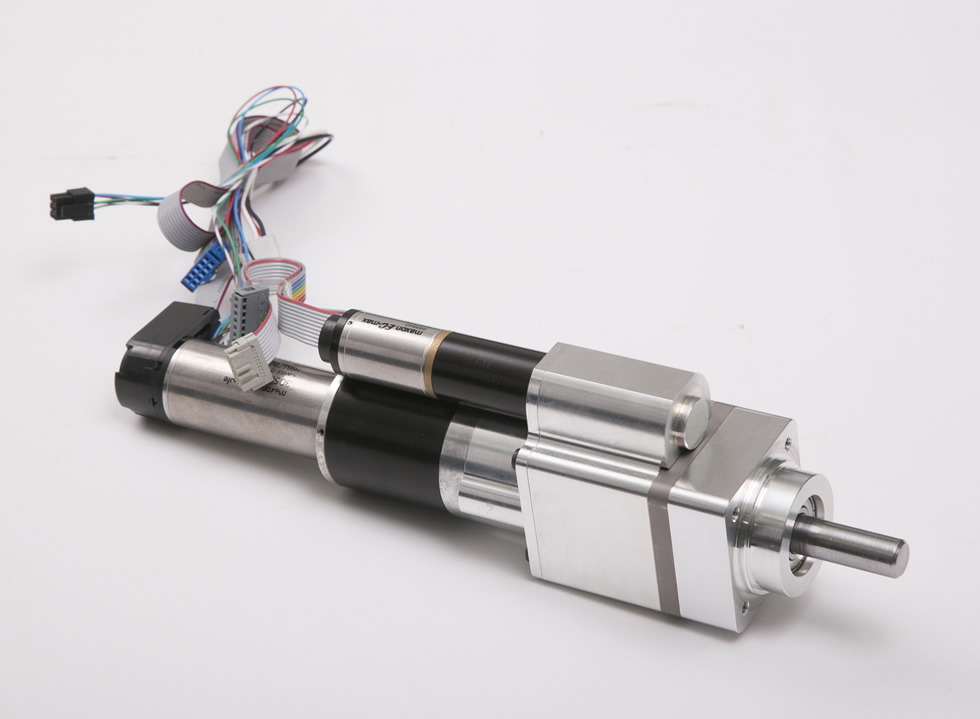

2-Stages Transmission

Features: It change the speed in a two ways, one reduction ratio is 1:1 (directly connected to input),the other reduction ratio is 6:1 (reduction by planetary gear mechanism)

Usage Example: Drive unit for unmanned traveling device

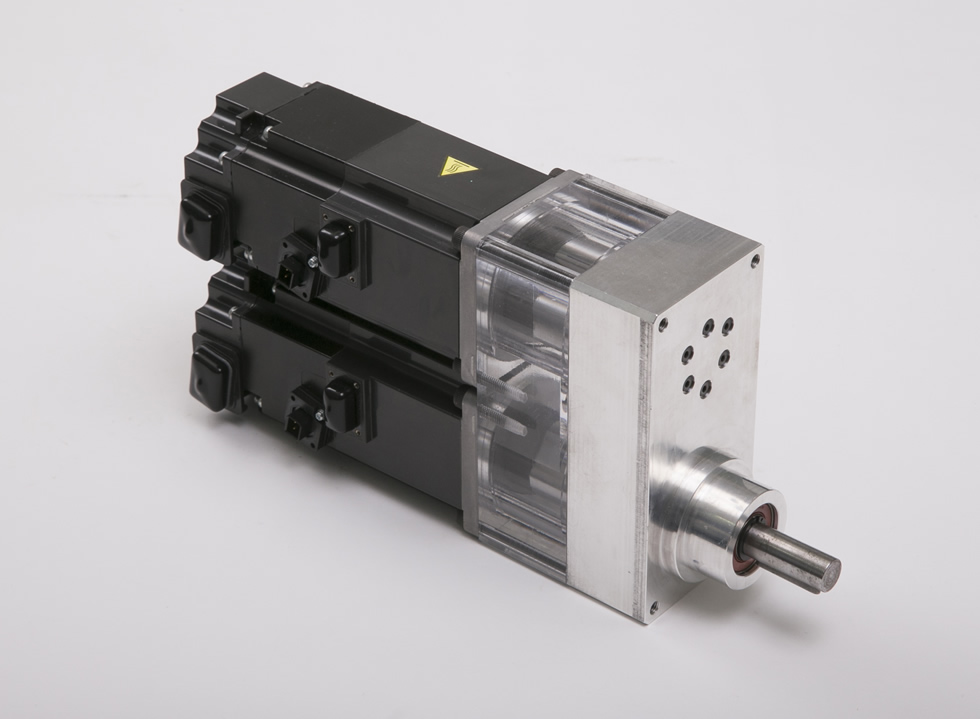

CVT(Continuously Variable Transmission) using planetary gear mechanism

Features: It is a single stage transmission applying differential planetary mechanism. By using this, the range which motor works efficiently can expand.
