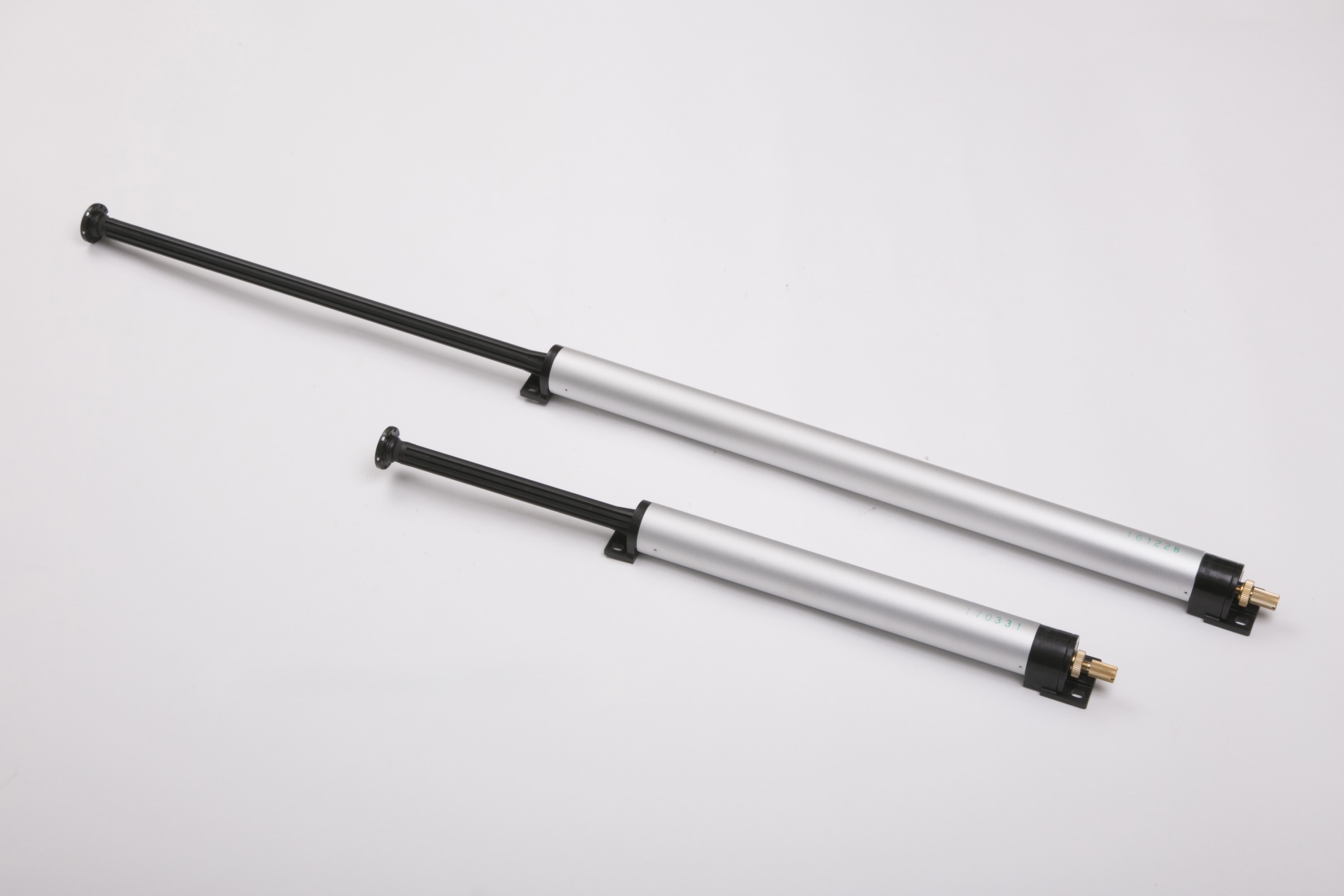

This is a direct-acting type of air damper. This damper is applicable in a sliding door with a self-closing function.
- It can be easily set up due to its compact design.
- Resinified inner rod reduced the weight of the product.

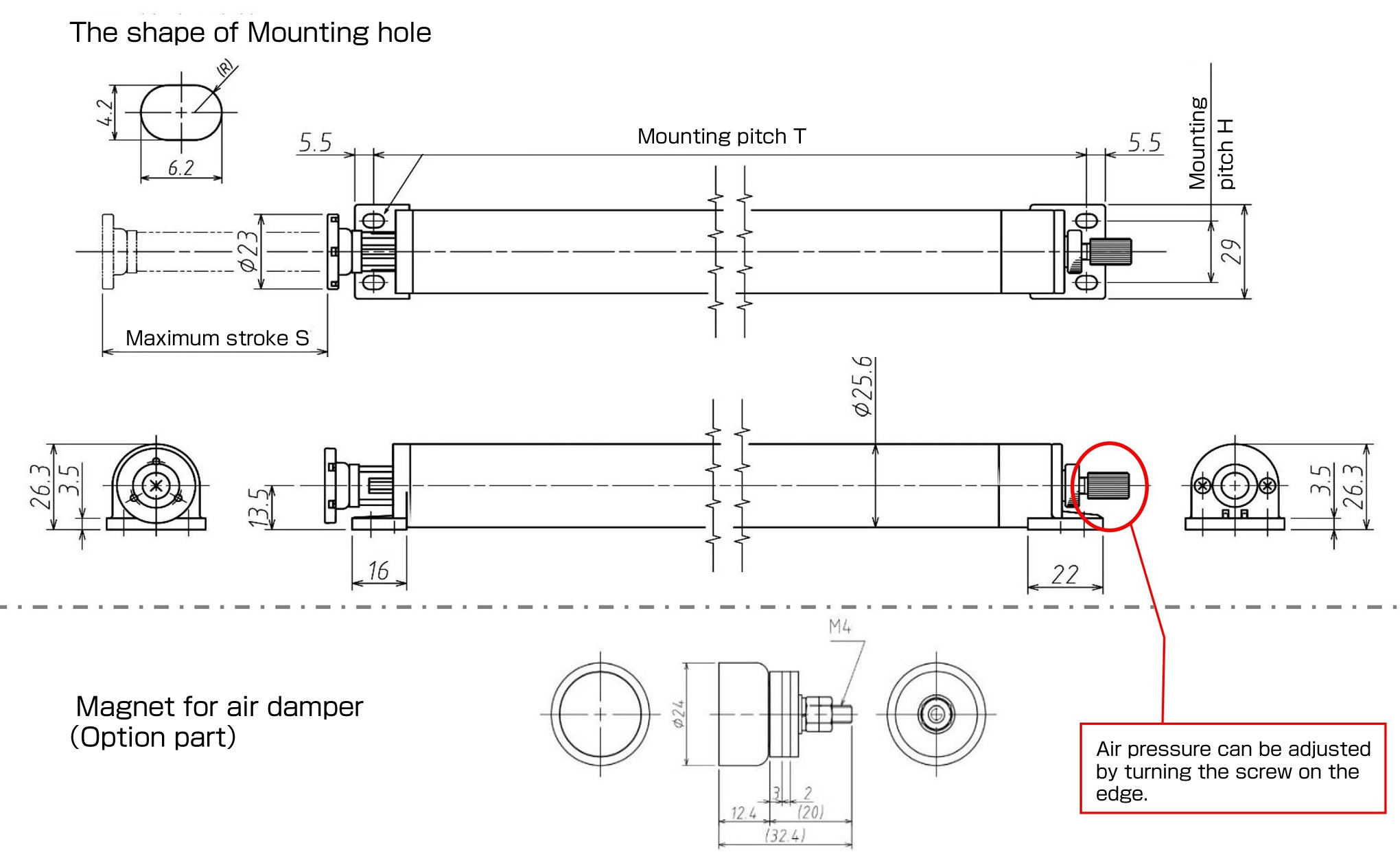

- Air pressure can be adjusted by turning the screw on the edge without disassembly.
- Magnet that can catch the tip of the rod is available as an option part.
- There are two types; Regular and Short.
Material of parts
Cylinder：Aluminum alloy（A6063）
Rod：Nylon（PA66）
Magnet：Ba ferrite Magnet

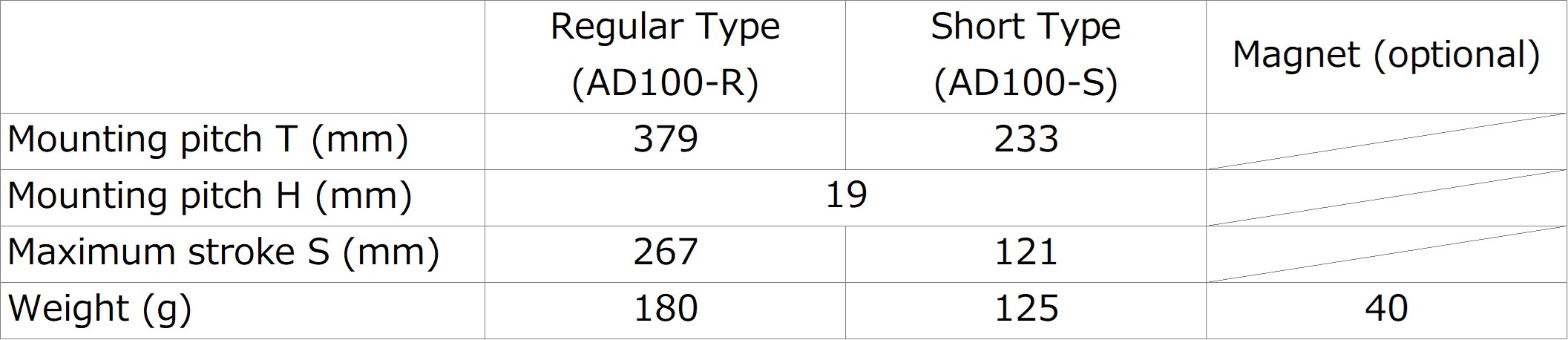

| 項目 | Regular | Short | Magnet |
| Mounting pitch T(mm) | 379 | 233 | - |
| Mounting pitch H(mm) | 19 | - | |
| Maximum strok S(mm) | 267 | 121 | - |
| Weight (g) | 180 | 125 | 40 |
